Top Hammer Tools T68 Retrac Thread Button Bits For Tube Drilling
Product specifications: T68 Button Bit
| T68 Button bits | Dia. | Tip size (mm) | Flushing hole No. | Weight | Part No. |
| mm | inch | Front | Gauge | Angle | Side | Front |
| | | | | | | | | | |
| Normal thread |
| | 102 | 4" | 14x6 | 14x8 | 35° | 2 | - | 8.7 | N102T68-614/814 |
| 102 | 4" | 12x4,12x4 | 12x10 | 35° | 4 | - | 8.7 | N102T68-612/012 |
| 105 | 4 1/8" | 14x6 | 14x8 | 35° | 2 | - | 8.9 | N105T68-614/814 |
| 105 | 4 1/8" | 14x4,12x2 | 14x8 | 35° | 4 | - | 8.9 | N105T68-612/814 |
| 110 | 4 3/8" | 14x6 | 16x8 | 35° | 2 | - | 9.4 | N110T68-614/816 |
| 110 | 4 3/8" | 14x4,14x2 | 16x8 | 35° | 4 | - | 8.9 | N110T68-614/816 |
| 115 | 4 1/2" | 14x6 | 16x8 | 35° | 2 | - | 9.6 | N115T68-614/816 |
| 115 | 4 1/2" | 14x4,14x2 | 16x8 | 35° | 4 | - | 9.5 | N115T68-714/816 |
| 115 | 4 1/2" | 14x4,14x4 | 14x10 | 35° | 4 | - | 9.5 | N115T68-614/014 |
| 127 | 5" | 14x8 | 16x9 | 35° | 3 | - | 11 | N127T68-814/916 |
| 127 | 5" | 14x4,14x3 | 16x8 | 35° | 4 | - | 10.8 | N127T68-714/816 |
| 152 | 5" | 16x8 | 16x9 | 35° | 3 | - | 16.2 | N152T68-816/916 |
| 152 | 5" | 16x9 | 16x9 | 35° | 3 | - | 16.2 | N152T68-916/916 |
| 152 | 5" | 14x9,14x3 | 16x9 | 35° | 3 | - | 16.2 | N152T68-114/916 |
| Retrac thread |
| | 102 | 4" | 12x4,12x4 | 12x10 | 35° | 4 | - | 9.3 | R102T68-612/814 |
| 102 | 4" | 14x4,12x2 | 14x8 | 35° | 4 | - | 9.3 | R102T68-612/814 |
| 110 | 4 3/8" | 14x6 | 16x8 | 35° | 2 | - | 10 | R110T68-614/816 |
| 115 | 4 1/2" | 14x6 | 16x8 | 35° | 2 | - | 10 | R115T68-614/816 |
| 127 | 5" | 14x8 | 16x9 | 35° | 3 | | 15 | R127T68-814/916 |
| 140 | 5 1/2" | 14x9 | 16x9 | 35° | 3 | | 17.8 | R140T68-914/916 |
1. Product Name:thread drill bit
2. Application:Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment like Atlas.
3. MOQ:No MOQ required for testing and trial orde
4. Body Type:Normal type and retract type
5. Thread type:R22,R25,R28,R32,R38,T38,T45,T51,T58,T68,T60
6. Diamater:32mm-152mm
7. Button shape:Spherical and Ballistic
8. Face shape:Flat shape and Drop-center shape

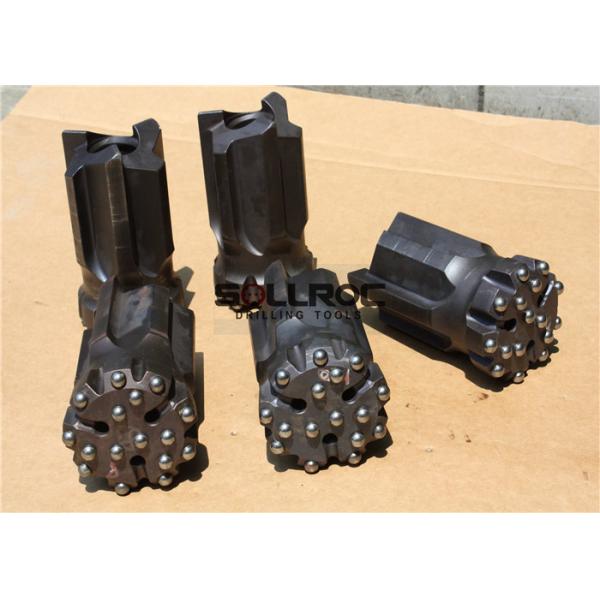

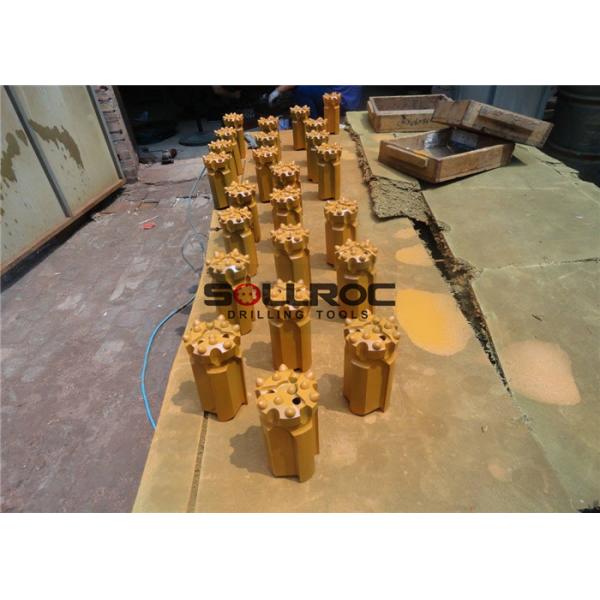

Product Photos
About Us:
Sollroc with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools.
